Detect Active Directory Attacks with Wazuh & Sysmon

Learn how to integrate Sysmon telemetry with Wazuh to detect and investigate Active Directory attacks. This guide covers Sysmon deployment, agent configuration, and real-time threat detection across your AD infrastructure.

Prerequisites

Before deploying Sysmon and integrating with Wazuh, ensure:

• Wazuh Manager: A running Wazuh deployment (on-premises or cloud)
• Windows Endpoints: Windows 10/11 or Windows Server machines joined to Active Directory
• Wazuh Agent: The Wazuh agent must be installed and running on target Windows systems
• Admin Rights: Administrator or equivalent privileges on Windows systems for Sysmon installation
• Internet Access: Required to download Sysmon and configuration files

Preparation: Download Required Tools

1. Download Sysmon

Sysmon is a Windows system service and device driver that monitors system activity and logs it to the Windows event log. Download the latest version from Microsoft Sysinternals:

• Sysinternals Sysmon Download
• Extract Sysmon64.exe (or Sysmon.exe for 32-bit systems)

2. Download Sysmon Configuration

A well-crafted Sysmon configuration file is essential for comprehensive monitoring. Use the community-maintained SwiftOnSecurity configuration:

• SwiftOnSecurity Sysmon-Modular Configuration
• Download the sysmonconfig.xml file

3. Organize Files

Create a directory and place both files together for easy installation:

C:\Sysmon\
  ├── Sysmon64.exe
  └── sysmonconfig.xml

Installation: Deploy Sysmon

Step 1: Open PowerShell as Administrator

Right-click PowerShell and select "Run as Administrator", then navigate to your Sysmon directory:

cd C:\Sysmon

Step 2: Install Sysmon with Configuration

Execute the following command to install Sysmon as a Windows service with the security-focused configuration:

.\Sysmon64.exe -i .\sysmonconfig.xml -accepteula

What this command does:

• -i: Install Sysmon as a Windows service
• .\sysmonconfig.xml: Apply the SwiftOnSecurity configuration profile
• -accepteula: Automatically accept the Sysinternals EULA

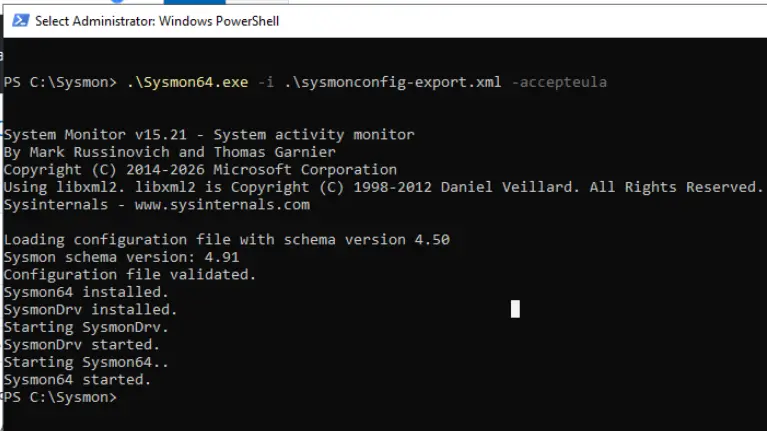

Sysmon installation command executed successfully

Verification: Confirm Sysmon is Running

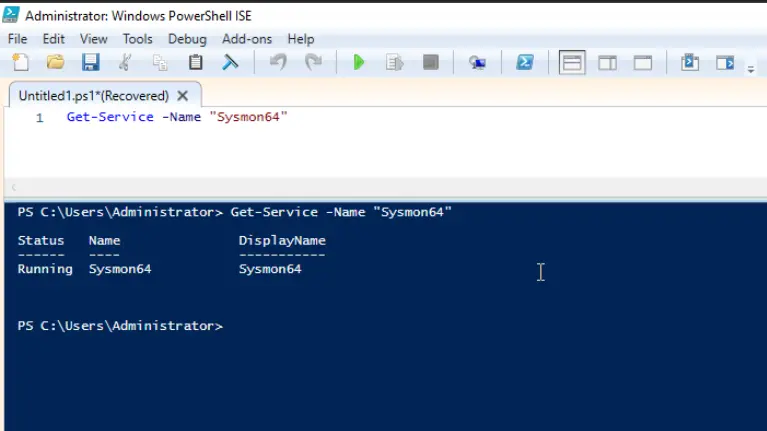

Check the Sysmon Service

Verify that Sysmon has been installed as a Windows service:

Get-Service -Name "Sysmon64"

You should see output indicating the service is running:

Status   Name             DisplayName
------   ----             -----------
Running  Sysmon64         System Monitor

Check Event Viewer for Sysmon Logs

Navigate to Event Viewer and verify that Sysmon is logging activity:

• Open Event Viewer (eventvwr.msc)
• Navigate to: Applications and Services Logs > Microsoft > Windows > Sysmon > Operational
• Confirm you see event logs with IDs like Event 1 (Process creation), Event 3 (Network connection), etc.

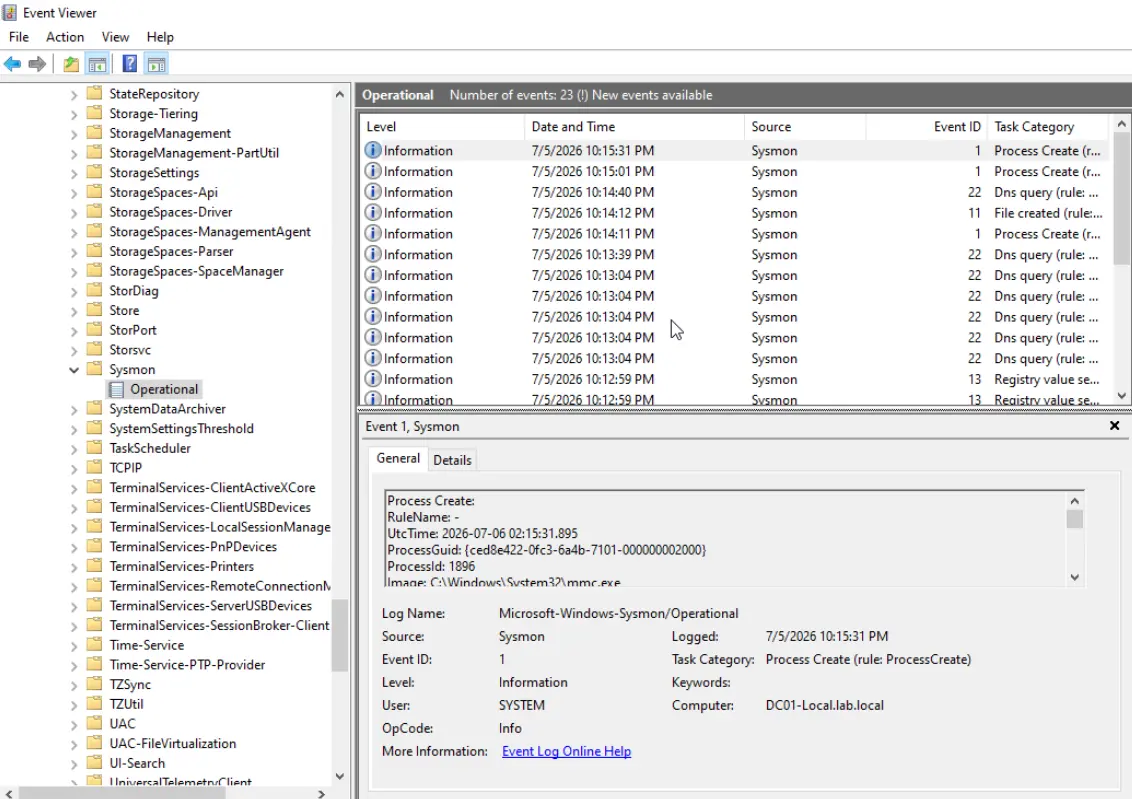

Sysmon events captured in Event Viewer's Operational channel

Detailed process creation and system events from Sysmon

Wazuh Agent Configuration

Configure Wazuh to Ingest Sysmon Logs

To collect Sysmon logs, you need to configure the Wazuh agent to monitor the Sysmon operational event log channel.

Step 1: Locate the Wazuh Configuration File

Open the Wazuh agent configuration file:

C:\ProgramData\ossec\ossec.conf

Step 2: Add Sysmon Localfile Configuration

Add the following configuration block to monitor the Microsoft-Windows-Sysmon/Operational channel. Insert this within the <ossec_config> tags:

<localfile>
    <location>Microsoft-Windows-Sysmon/Operational</location>
    <log_format>eventchannel</log_format>
</localfile>

What this configuration does:

• <location>: Specifies the Windows event log channel to monitor
• <log_format>: Tells Wazuh this is an event channel (not a traditional text log)

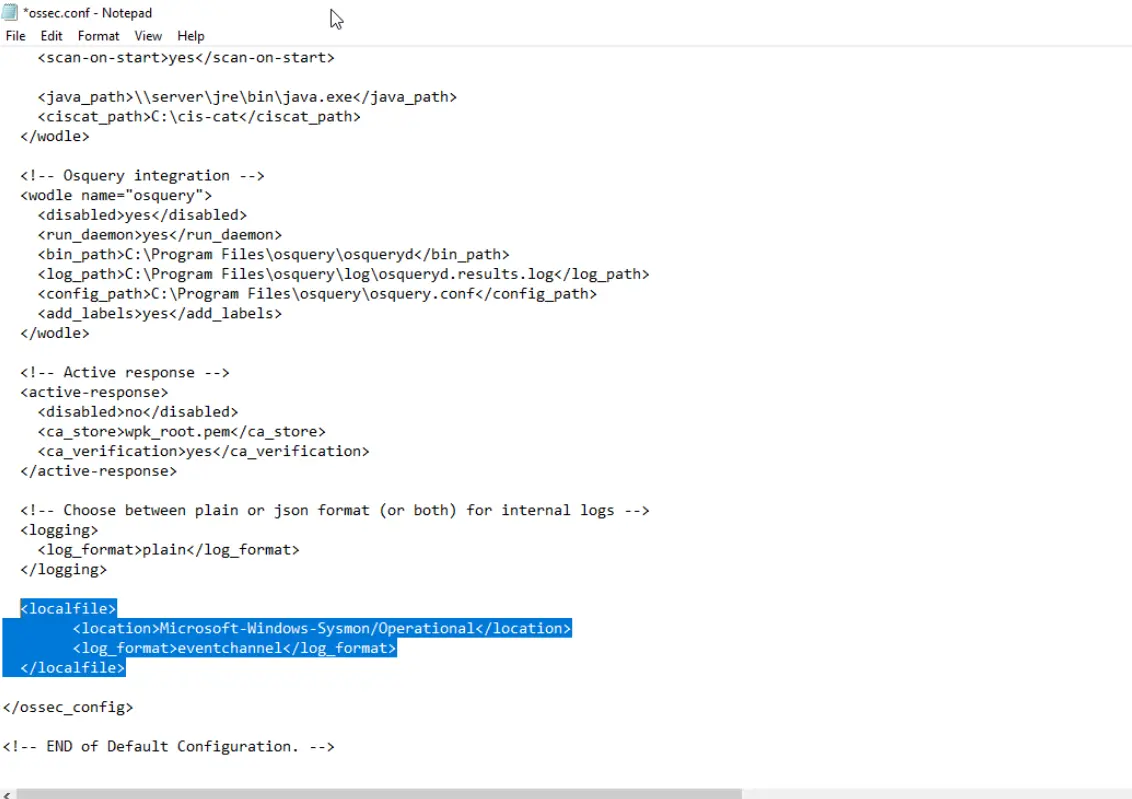

Wazuh agent ossec.conf file updated with Sysmon monitoring

Step 3: Restart the Wazuh Service

Restart the Wazuh agent service to apply the configuration changes:

Restart-Service -Name "Wazuh"

Or manually restart via Services:

• Open Services.msc
• Find Wazuh in the list
• Right-click and select Restart

Testing: Generate Sysmon Activity

Create Observable Process Activity

Now let's generate some activity for Sysmon to capture and Wazuh to ingest. Open PowerShell and run commands that will be logged:

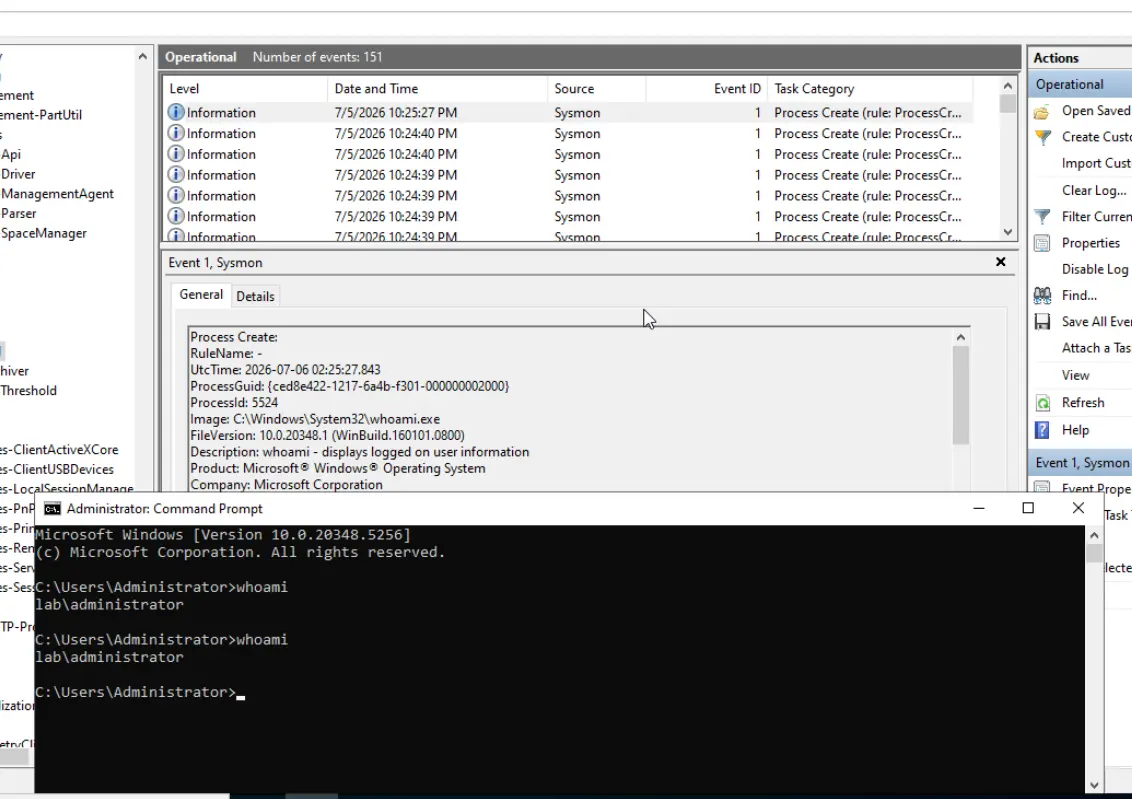

Executing PowerShell commands that trigger Sysmon event logging

Trigger a Process Creation Event

Execute this command to spawn a cmd.exe process, which will be captured by Sysmon as Event ID 1 (Process Creation):

Start-Process cmd

This simple command will create observable telemetry that Sysmon logs and Wazuh can ingest.

Verification: Wazuh Ingesting Sysmon Logs

Check the Wazuh Manager to confirm it's receiving and processing Sysmon logs from your endpoint.

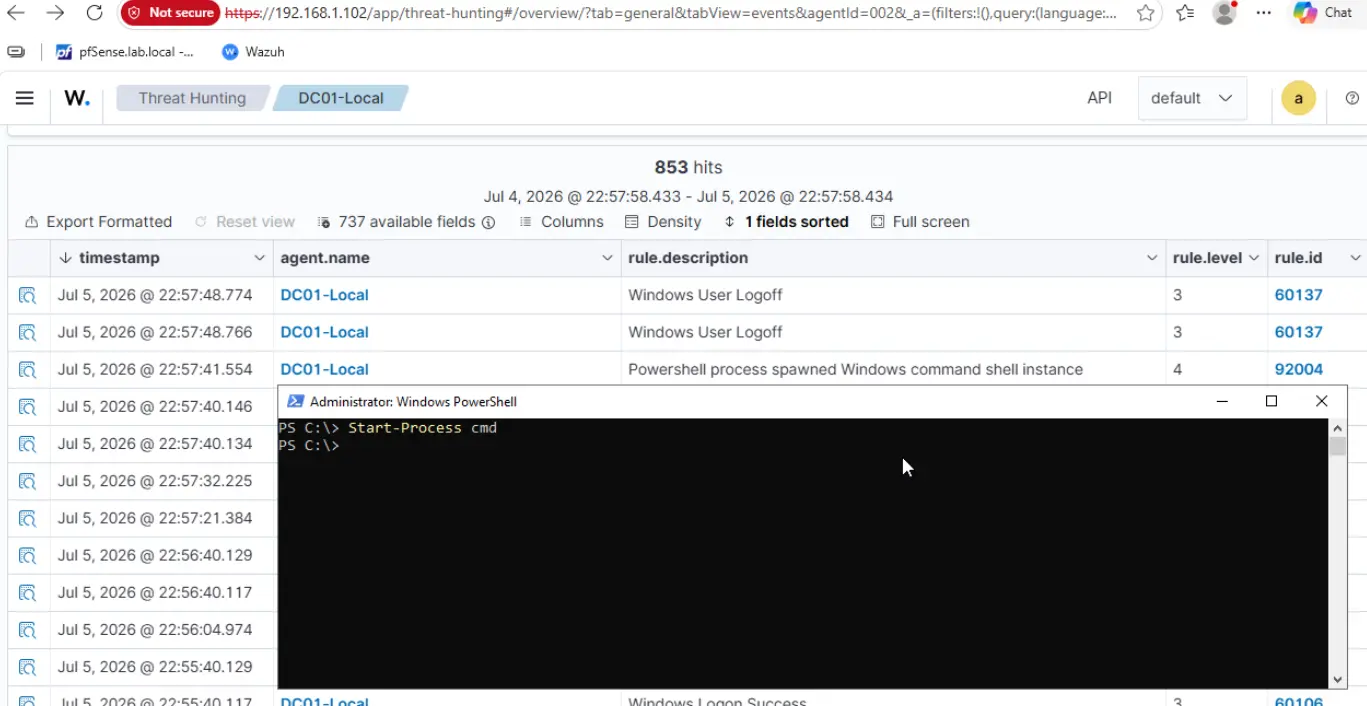

Wazuh dashboard displaying process creation events from Sysmon

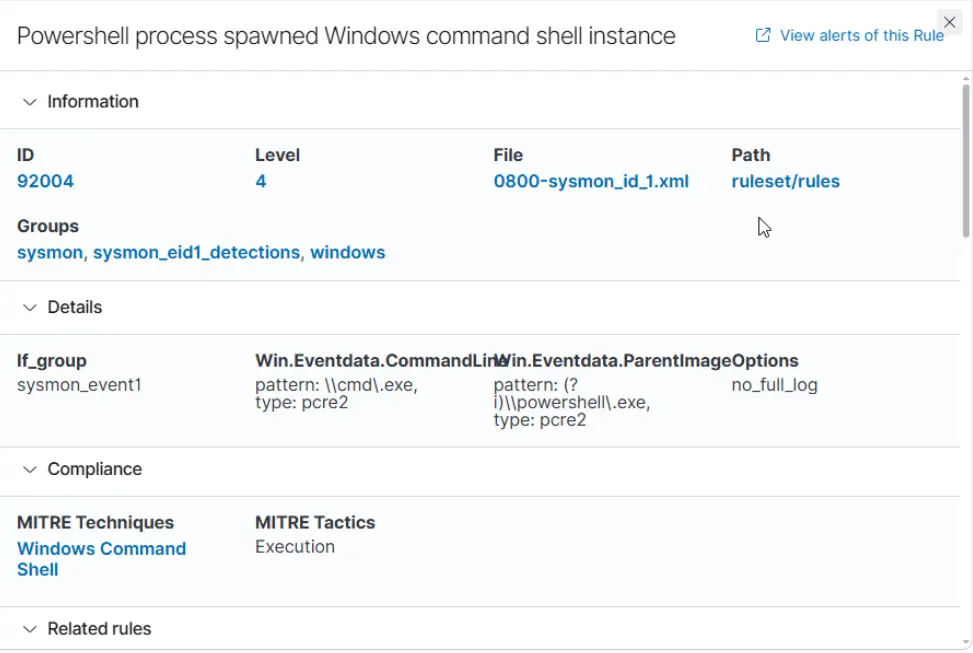

Detailed breakdown of a Sysmon Event ID 1 (Process Creation) in Wazuh

What's Next: Building Detection Rules

Now that Sysmon is integrated with Wazuh, you can build powerful detection rules for:

• Active Directory Attacks: Detect AD enumeration, credential dumping, lateral movement
• Process Injection: Identify suspicious process hollowing and injection techniques
• Privilege Escalation: Monitor for UAC bypasses and privilege escalation attempts
• Living-off-the-Land Attacks: Detect abuse of built-in Windows tools (LOLBins)
• Network Reconnaissance: Monitor DNS queries, port scans, and lateral connection attempts

Pro Tips

• Performance Impact: Sysmon and Wazuh agent are lightweight, but monitor system performance on resource-constrained VMs
• Configuration Tuning: The SwiftOnSecurity configuration is comprehensive. Fine-tune it based on your homelab needs
• Retention Policy: Configure log retention on your Wazuh manager to avoid disk space issues
• Alert Tuning: Start with broad detection rules and refine them to reduce false positives
• Testing Environment: Use a test machine to validate detection rules before deploying to production
